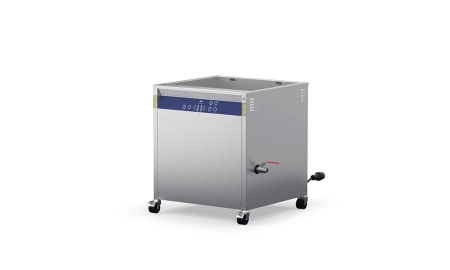

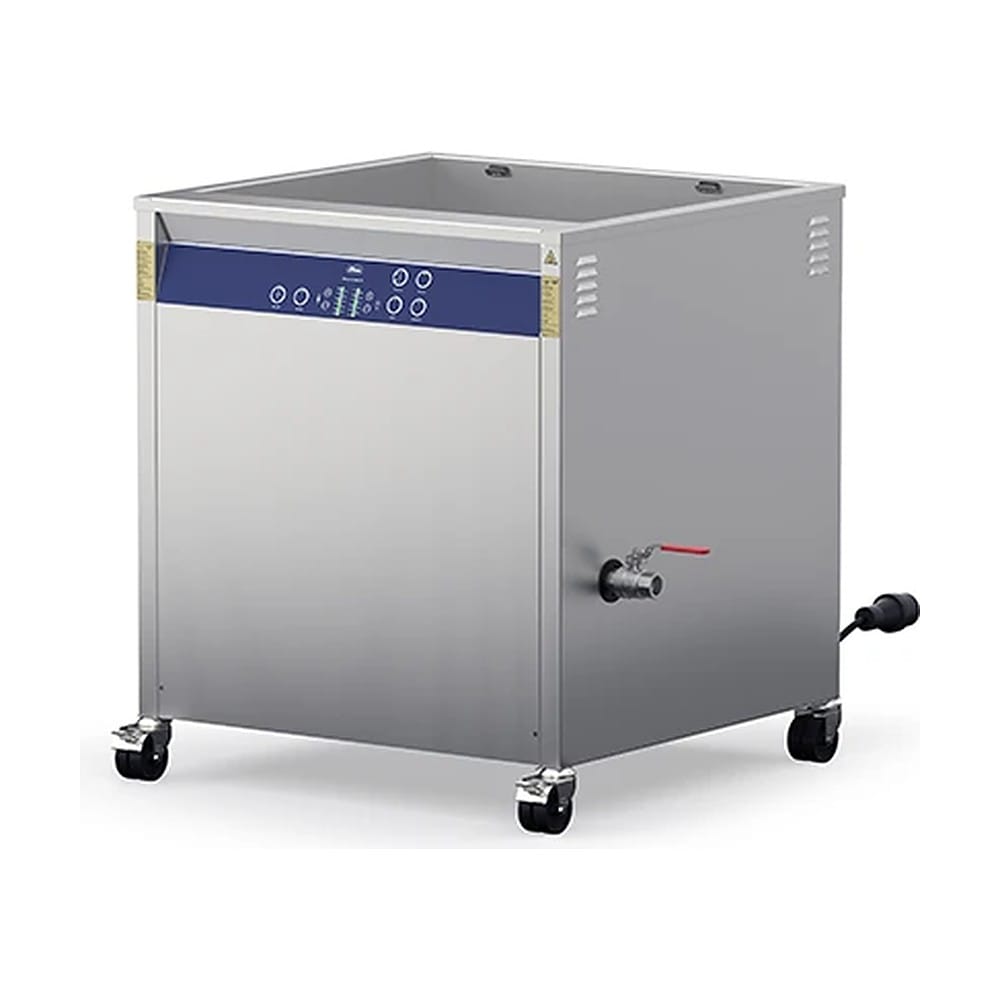

Ultrasonic Cleaner model X-tra ST 2500H 3 phase 3 x 400 volt ( EL1076439) Floor Standing
The Elmasonic X-tra ST range of ultrasonic cleaners are designed for use in a rugged production environment. Designed for continous operation for industrial cleaning applications. All parameteres are easy to monitor. The X-tra ST models offer two selectable operating frequencies – either 25 kHz or 45 kHz – depending on the cleaning job.
– 25 kHz for heavy duty parts cleaning – such as removal of stubborn contaminants like lapping and polishing pastes, carbons etc.
– 45 kHz for cleaning of sensitive parts and surfaces from contaminants like drilling emulsions, oils and greases. Also ideal for hard metal and glass surfaces in industrial environments as well as jewellery manufactures. A Sweep-function can be selected for optimum sound field distribution and high cleaning performance throughout the the entire ultrasonic bath. A switchable Pulse-function increases the peak ultrasonic performance output for extremely tenacious soils. A Dynamic-function: is used where the Sweep- and Pulse-functions run alternately on an automatic basis. The ultrasonic performance is temporarily increased by up to 20%. At the same time, the even ultrasonic sound field distribution in the ultrasonic bath enhances the cleaning effect. Short heating times due to the high heating capacity with temperature regulation (30 – 80°C). High user safety is incorporated with automatic safety shutdown. Elmasonic xtra ST devices are rated for continuous operation under the highest operational demands. The tanks are fabricated from a special grade of stainless steel, which makes them extremely robust with a long service life.
- Max. Tank Volume 255 Litre
- Working Tank Volume 215 Litre
- Internal Tank Dimensions 750mm x 650mm x 520mm
- External (overall) Dimensions 1035mm x 900mm x 936mm
- Weight 107 kg
- Max. Basket Loading 50 kg
- Draincock 1″
- Mains Voltage 3 x 400 V N/P/E 50 hZ
- Operating Frequency 25 kHz / 45 kHz
- Total Power Consumption 9500 W
- Effective Ultrasound Output 25 kHz 1800 W
- Effective Ultrasound Output 45 kHz 2000 W
- Max. Peak Ultrasound Output 25 kHz 7200 W
- Max. Peak Ultrasond Output 45 kHz 8000 W
- Effective Ultrasound Output (dynamic mode) 2000 W
- Max. Peak Ultrasound Output (dynamic mode) 8000 W
- Heatng Power 7500 W
- Sound Pressure Level 80 dB (measure with basket and hinged cover fitted at 1 metre)
- Ultrasound Level 110 dB (measure with basket and hinged cover fitted at 1 metre)
- 3 Year Limited Warranty* *(based on single-shift operation)
- Made in Germany
